Substrate Technology: Surface Preparation Tooling

Substrate Technology: Surface Preparation Tooling

From bare-concrete grinding to a high-gloss polish, the right diamond tooling makes every job faster, cleaner, and better. We carry diamond tooling for every stage of surface prep and polishing — metal-bond segments and cup wheels for grinding, resin pads for polishing, PCD for coating removal, and specialty tooling for terrazzo, marble, and bush-hammered finishes — for both walk-behind grinders and hand tools. Not sure what you need? Call and we'll match the tooling to your machine and your surface.

Shop Diamond Tooling by Type

Sort By:
Show:

Sase Screws

  • Attaching non-OEM standard trapezoid tools to SASE®-style attachment plates
  • Attaching multi-mount puck tools to SASE®-style plates
  • 3 screws per tool — the correct hardware for a secure hold



Standard Trapezoid Prep Tool — Double Bar

  • Inland C6 double-bar trapezoid for standard attachment
  • Single bar segment design
  • Best for general surface prep and thin-mil coating & adhesive removal
  • Grits available: 16, 30, 60, and 120
  • Metal bond available: Soft, Medium, and Hard
  • Threaded 8mm holes

Standard Trapezoid Prep Tool – Single Bar

  • Single bar trapezoid for standard attachment
  • Best for surface prep and coating & adhesive removal
  • Grits available: 16, 30, 60, and 120
  • Metal bond available: Soft, Medium, and Hard
  • Threaded 8mm holes

Standard Double Round Trapezoid Prep Tool

  • Inland C6 double round trapezoid for standard attachment
  • Single bar segment
  • Best for general surface prep and thin-mil coating & adhesive removal
  • Grits available: 16, 30, 60, and 120
  • Metal bond available: Soft, Medium, and Hard
  • Threaded 8mm holes

Standard Arrow Trapezoid Prep Tool

  • Inland C6 double arrow trapezoid for standard attachment
  • Available in clockwise or counter-clockwise rotation — made by request for rotary grinders
  • Best for general surface prep and thin-mil coating & adhesive removal
  • Grits available: 16, 30, and 60
  • Metal bond available: Soft, Medium, and Hard
  • Threaded 8mm holes

Double PCD Trapezoid

  • Double PCD segments with a wear bar — aggressive removal with depth control
  • Clockwise and counter-clockwise rotation available — matched to your rotary grinder
  • Standard trapezoid attachment style — fits bolt-on grinders
  • Best for: coating, mastic, glue, and thick adhesive removal
  • Threaded 8mm holes

5 Segment Multi-Mount Tool

  • 3-inch diameter, 5-segment multi-mount tool
  • Ideal for the Prep/Master® Jr and similar-size lighter machines
  • Best for: general surface prep, thin-mil coating or paint removal, and first steps for polishing
  • Grits available: 16, 30, 70, and 120
  • Metal bond available: Medium and Hard
  • Threaded 8mm holes

10 Segment Multi-Mount Tool

  • Inland 3-inch, 10-segment multi-mount puck
  • Best for: general surface prep, thin-mil coating or paint removal, and first steps for polishing
  • Grits available: 16, 30, 70, and 120
  • Metal bond available: Medium and Hard
  • Threaded 8mm holes

STI Terrazzo 9 Polishing Pads

  • 9mm thick diamonds — built for medium to heavy machines
  • Long life — 3,000 to 4,000 sq ft average lifespan
  • High gloss finish from the newly designed pattern
  • Removes swirl marks for a clean, even finish
  • Reaches corners and wall angles — polish the areas most pads can’t
  • Best on: marble, travertine, and terrazzo

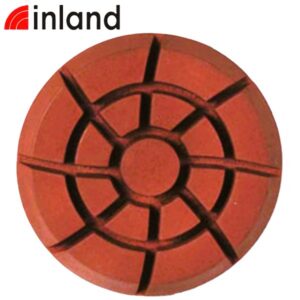

Inland High Luster Marble Polishing Pads

  • Epoxy-bond matrix — long life when used wet
  • High-luster finish — for the closing and polishing steps
  • For marble and terrazzo polishing
  • Use wet
  • Works well on lightweight machines for polishing marble
  • Full grit range: 50, 100, 200, 400, 800, 1500, and 3000
  • 3-inch diameter, 8mm thickness


How to Choose Diamond Tooling

The right tool depends on the surface and the stage: metal-bond diamonds for grinding and prep, resin-bond pads for polishing, PCD for stripping coatings and glue. Bond hardness matters too — softer bonds for hard concrete, harder bonds for soft concrete. Not sure? Call us and we’ll match the bond, grit, and segment to your floor and machine.

Frequently Asked Questions

What diamond tooling do I need for grinding concrete? Metal-bond diamond segments or cup wheels, matched to your concrete’s hardness.

What’s the difference between metal-bond and resin-bond? Metal-bond diamonds grind and prep; resin-bond pads polish and refine. Most polished-concrete jobs use both, in sequence.

Do you carry tooling for my grinder? Yes — planetary tooling for Lavina and others, plus hand-grinder tooling in 5″ and 7″. Call with your machine and we’ll confirm the fit.

Order Diamond Tooling Today

Call (815) 941-4800 x 1 or fill out our contact form. New to polishing? See our How to Choose a Concrete Grinder guide.
