PLP Diamond System – Planetary Polishing – Dry Process

PLP Diamond System

(PLP tooling is being phased out and is available while current stock lasts — call to check availability)

The PLP Diamond System is a complete, matched diamond polishing system built for planetary concrete grinders — nine coordinated metal- and resin-bond tools (numbered #1–#9) that take concrete from the first grind to a high-gloss polished finish. Like the EGT system, it runs entirely dry, and every tool is color-coded yellow so you always know you’re running a matched set. As STI puts it: it’s a system, not a machine.

Ready to put the PLP Diamonds to work? Call for pricing and availability, or request a quote — and you’ll talk to a real surface-prep expert, not a call center.

Built for Planetary Grinders

The PLP System is designed for planetary machines sized 770–950mm, 15–24 HP, and 800–1,000 lbs — the larger planetary grinders used for production polishing. Tool count and pad adapters depend on your machine’s size.

How the PLP System Works

A defined 9-step, all-dry sequence, with the machine on dust collection throughout:

• Steps #1–#3 — metal-bond tools (patented EG attachment) to grind and open the surface
• Step #4 — first resin-bond step, followed by a densifier application
• Steps #5–#9 — resin-bond tools that refine and polish to a high gloss

Running the tools in numbered order delivers a consistent, repeatable finish — fully dry, no slurry to manage.

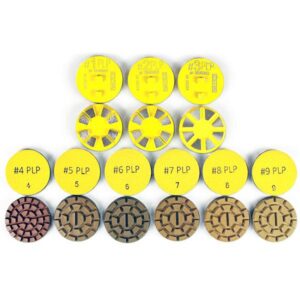

What’s in the System

• #1 & #2 — metal-bond grinding tools (EG attachment), ~20,000 SF life each
• #3 — metal-bond tool, ~30,000 SF life
• #4–#9 — resin-bond polishing tools, yellow Velcro, ~15,000 SF life each

Tool Count by Machine Size

• 650–750mm machines: 9 tools (steps #1–4 & #6–9), 12 tools (step #5)
• 750–800mm & 800mm+ machines: 12 tools (steps #1–4 & #6–9), 18 tools (step #5)

Tools mount with full-face Velcro pad adapters sized to your machine.

Is Your Floor a Candidate?

The concrete should be clean of coatings and adhesives (a #0 Prep Tool handles prep if needed), at least 4,250 PSI (29 MPa), and over 28 days old. A 100 SF mock-up is recommended before any full job. Call us and we’ll help you check.

PLP vs. CLC vs. EGT — Which System?

• PLP — for planetary grinders (yellow, 9 steps, all dry)
• EGT — for Prep/Master machines (green, 8 steps, all dry)
• CLC — for Prep/Master machines (red, 7 steps, dry-wet-dry)

Not sure which fits your machine and process? Call and we’ll match the system to your setup.

Frequently Asked Questions

What machines is the PLP System for? Planetary grinders sized 770–950mm, 15–24 HP, 800–1,000 lbs.

Is it wet or dry? Fully dry — all nine steps run dry with dust collection.

What floors is it for? Bare concrete at least 4,250 PSI and 28+ days old, clean of coatings.

Order the PLP Diamond System Today

Call (815) 941-4800 x 1 or fill out our contact form. See all our diamond systems, planetary tooling, and diamond tooling.

Item #’s
#1 – 585400001
#2 – 585400002
#3 – 585400003
#4 – 585400001
#5 – 585400001
#6 – 585400001
#7 – 585400001
#8 – 585400001
#9 – 585400001
