MG2 Diamond System – Marble & Terrazzo Polishing

2316 https://substratetechnology.com/wp-content/uploads/2021/06/MG2-diamond-sys-1000x1000-1.png
Brand: Substrate Technology, Inc.
Weight: 1.00lb
Dimensions: 17.00in x 17.00in x 1.00in
Attachments: STI_TDS_MG2-system.pdf

Ask question

Email a Friend

Create PDF

MG2 Diamond System – Marble & Terrazzo Polishing

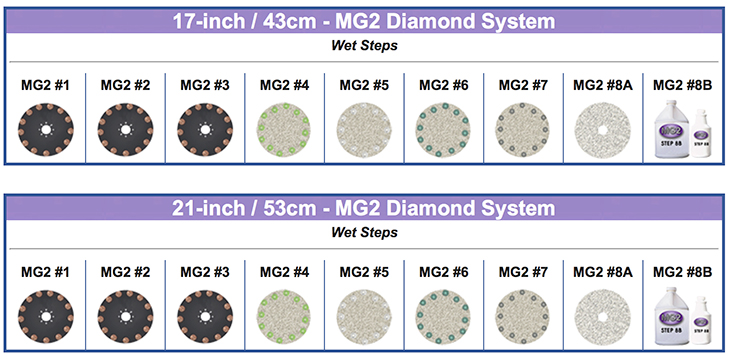

The MG2 Diamond Pad System is a coordinated resin-bond diamond system to perform marble and terrazzo polishing using any low-speed, mono-rotational machine. The system is only to be used wet and in sequence as numbered by tools #1 through #8. All tools are numbered and carry the same purple “MG2” logo to indicate a matched system.

IMPORTANT! The MG2 System is never to be used on terrazzo or marble floors that have elevation changes, divider strips, or lippage.

MG2 Steps #1, #2, #3

#1, #2 & #3 is a tool with resin dots fixed to a rubber backer and is identified by the number on back as “#1,” “#2,” & “#3.” All tools feature a velcro backer for attachment to machine driver.

  • Approximate life of #1 is 8,000 SF (800 M2)
  • Approximate life of #2 is 8,000 SF (800 M2)
  • Approximate life of #3 is 10,000 SF (1,000 M2)

MG2 Step #4

#4 is a tool with resin dots fixed to a fiber pad and is identified by the number on back as “#4.” This tool features a gripping backer for use with hook Velcro machine driver.

  • Approximate life of #4 is 10,000 SF (1,000 M2)

MG2 Step #5

#5 is a tool with resin dots fixed to a fiber pad and is dentified by the number on back as “#5.” This tool features a gripping backer for use with hook Velcro machine driver.

  • Approximate life of #5 is 10,000 SF (1,000 M2)

MG2 Step #6

#6 is a tool with resin dots fixed to a fiber pad and is identified by the number on back as “#6.” This tool features a gripping backer for use with hook Velcro machine driver.

  • Approximate life of #6 is 10,000 SF (1,000 M2)

MG2 Step #7

#7 is a tool with resin dots fixed to a fiber pad and is identified by the number on back as “#7.” This tool features a gripping backer for use with hook Velcro machine driver.

  • Approximate life of #7 is 10,000 SF (1,000 M2)

MG2 Step #8A

#8A is a tool that is a fiber pad covered with abrasive materials and is identified by the number on back as “#8.” This tool features a gripping backer for use with hook Velcro machine driver.

  • Approximate life of #8A is 10,000 SF (1,000 M2)

MG2 Step #8B

#8B is a chemical that is used with the Step #8A. The chemical is a concentrated hardening agent that increases slip resistance and surface abrasion resistance. Dilution of step #8B is 4 oz of chemical per gallon of clean tap water (or 30ml/liter).
