L20GS7 Propane Grinder

Item #
303603020

We have a wide variety of FLOOR GRINDERS available!! To learn more about our selection, find the right option for your next project, or order your tooling, call us today at   +1 (815) 941-4800 x1

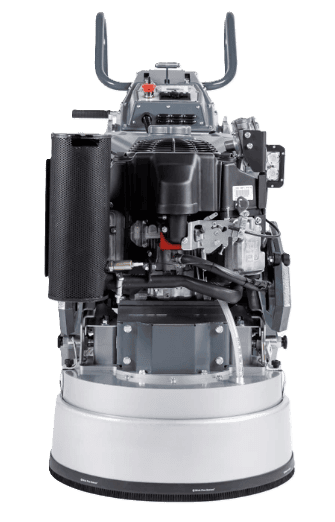

L20GS7 Propane Grinder

The all-new 20-inch LAVINA S7 propane Grinder is the latest addition to the Lavina S7 lineup. It combines the compact 20-inch footprint with the new S7 features and upgrades to deliver superior performance.

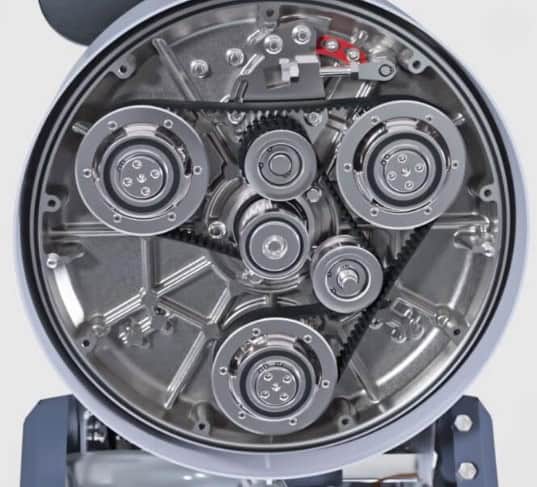

NEW SEALED & DUST-PROOF GRINDING HEAD

• Longer service life and less maintenance.
• Completely redesigned chain-driven planetary drive
• New stronger timing belt
• Upgraded shafts, seals and bearings
• New lighter timing pulleys for better power transmission
• New 2-piece aluminum main belt housing with belt inspection cover

NEW FRAME DESIGN

• Better control, easier tool changes, and less vibrations.
• New weights for faster position change
• Redesigned frame allowing easier tool changes
• Ergonomic handle design for faster adjustability and more positions
• Rubber bushing used at head attachment points for less vibrations for user
• Working width: 28 in. (71cm)

SPECIFICATIONS

• Grinder Series: S7
• Grinder Type: Planetary
• Engine: Kawasaki FS481V, 603 cc (18 hp / 13 kW)
• Engine RPM: 2000-3600
• Weight of Machine: 573 lbs
• Grinding Pressure: 286-363 lbs
• Tool Holder Diameter: 3 x 9 in
• Head Rotation: Counter-clockwise / left rotation
• Working Width: 20 in
• Propane Tank Capacity: 20 lbs
• Water Tank Capacity: 2.1 gal
