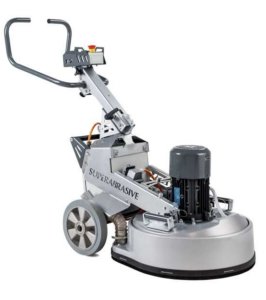

L19S7 Electric Grinder

L19S7 Electric Grinder

L19 is a new addition to the LAVINA S7 line, and is offered in 115V (L19S7) and 220V (L19EUS7). It’s a small and lightweight single-speed grinding and polishing machine, similar to the 16″ Elite model but with a 20″ footprint. This is a great machine for rental stores, DIYers, and working in tight areas, such as bathrooms, small patios, basements, etc.

Grinder Features

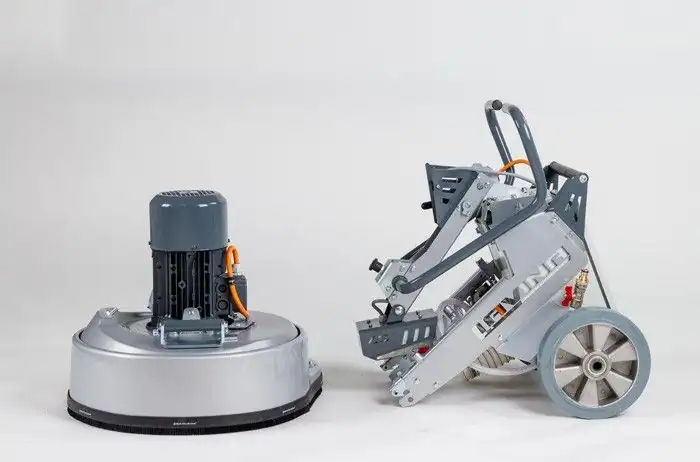

• Compact design and foldable frame, that can be also separated in two pieces for easy transportation and storage.
• Dust-proof planetary drive with low-friction rubber seal protects internal components from dust and moisture, which reduces maintenance and increases service life.
• Three 9-inch grinding heads with right / clockwise rotation (use the black pcd and carbide scrapers).
• Floating skirt with flexible brush for optimal dust containment.
• Simple control panel.
• Option to add weights – up to two 18.5lbs / 8kg weights (#L21.50.00.00)

Specifications

• Horsepower: 3HP
• Voltage: 1 phase x 115V
• Weight of Machine: 221 lbs
• Grinding Pressure: 139 lbs
• with additional weights: 176 lbs
• Working Width: 20″
• Tool Holder Diameter: 3×9 in
• Heads Rotation: Clockwise
• Grinder Series: S7
• Grinder Type: Planetary
